Continental GT (2012+)

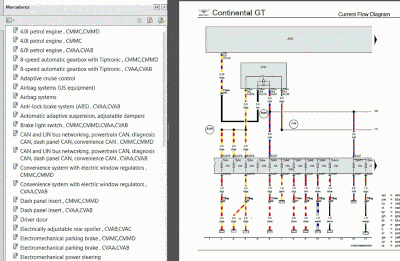

BENTLEY CONTINENTAL GT (2012+) - ELECTRICAL WIRING DIAGRAMS
BENTLEY CONTINENTAL GT (2012+) - ELECTRICAL WIRING DIAGRAMS - English Electrical Wiring Diagrams for vehicles Bentley Continental GT from 2012. CONTENTS: - 4.0l petrol engine , CMMC,CMMD - 4.0l petrol engine , CMMC - 6.0l petrol engine , CVAA,CVAB - 8-speed automatic gearbox with Tiptronic , CMMC,CMMD - 8-speed automatic gearbox with Tiptronic , CVAA,CVAB - Adaptive cruise control - Airbag systems (US equipment) - Airbag systems - Anti-lock brake system (ABS) , CVAA,CVAB - Automatic adaptive suspension, adjustable dampers - Brake light switch , CMMC,CMMD,CVAA,CVAB - CAN and LIN bus networking, powertrain CAN, diagnosis CAN, dash panel CAN, convenience CAN , CMMC,CMMD - CAN and LIN bus networking, powertrain CAN, diagnosis CAN, dash panel CAN, convenience CAN , CVAA,CVAB - Convenience system with electric window regulators , CMMC,CMMD - Convenience system with electric window regulators , CVAA,CVAB - Dash panel insert , CMMC,CMMD - Dash panel insert , CVAA,CVAB - Driver door - Electrically adjustable rear spoiler , CVAB,CVAC - Electromechanical parking brake , CMMC,CMMD - Electromechanical parking brake , CVAA,CVAB - Electromechanical power steering - Electronic steering column adjustment - Exterior lighting - Front left seat, electric - Front left seat, pneumatic - Front passenger door - Front right seat, electric - Front right seat, pneumatic - Fuse assignment , CMMC,CMMD - Fuse assignment , CVAA,CVAB - Fuse concept (2 batteries) , CMMC,CMMD - Fuse concept (2 batteries) , CVAA,CVAB - Interior lights - Keyless access locking and starting system - MMI (information electronics 1) - Multifunction steering wheel , CVAA,CVAB - Onboard supply control unit , CVAA,CVAB - Pedestrian protection system , (b29) - Roof modules , CMMC,CMMD - Roof modules , CVAA,CVAB - TV tuner, card reader unit (Japan) - TV tuner - Vehicle location system (Brazil) - Vehicle location system (not for Brazil) , CMMC,CMMD - Vehicle location system (not for Brazil) , CVAA,CVAB
Bentley Continental GT (2012+) - Wiring and Electrical Circuits
