Continental GTC (2019+)
BENTLEY CONTINENTAL GTC (2019+) - ELECTRICAL WIRING DIAGRAMS
BENTLEY CONTINENTAL GTC (2019+) - ELECTRICAL WIRING DIAGRAMS - English Electrical Wiring Diagrams for vehicles Bentley Continental GTC from 2019. CONTENTS: - 4.0l petrol engine , CVDA - 6.0l petrol engine , DDBA, DDBD - 8-speed automatic gearbox with Tiptronic - 48 V system - Active engine mountings - Adaptive cruise control - Adjustable driver and front passenger seats , (L0L) - Adjustable driver and front passenger seats , (L0R) - Aerials - Airbag systems for LHD vehicles - Airbag systems for RHD vehicles - Anti-lock brake system (ABS) - Audio system Advanced - Audio system Premium - Audio system Standard - Automatic adaptive suspension, adjustable dampers - Automatic air conditioning system - Centre console switches - Connector Views A to Z - Convenience system and anti-theft alarm system - Convertible roof operation - Dash panel insert - Data bus diagnostic interface and diagnostic connector - Dynamic roll stabilisation - Earthing concept - Electrically operated rear lid - Electromechanical power steering - Exterior lighting - Fitting Locations A to Z - Fitting Locations Earth Point - 3 - Fitting Locations Fuses - 3 - Front camera for driver assist systems - Front doors , (L0L) - Front doors , (L0R) - Fuel system - Head-up display - Interior lights , (L0L) - Interior lights , (L0R) - Lane change assist - Motorised display and operating unit - Multifunction display (MFI) - Night vision system - Onboard supply control unit - Overhead view camera - Parking aid (PDC) - Radiator fan - Radio navigation system - Rear window regulators and belt feeder motors - Reversing camera (Rear Assist) - Seat heating - Steering column adjustment - Steering column electronics - TV tuner - Tyre Pressure Monitoring System - Vehicle location system - Voltage supply for fuses, battery, starter and alternator

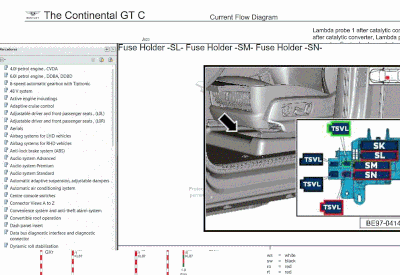

Bentley Continental GTC (2019+) - Wiring and Electrical Circuits
