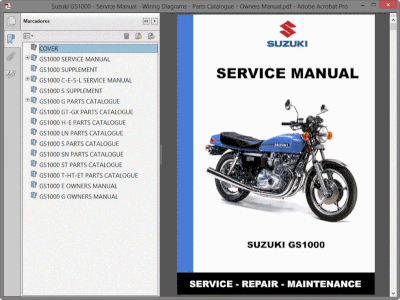

SUZUKI GS1000 - WORKSHOP, SERVICE, REPAIR MANUAL - WIRING DIAGRAMS - PARTS CATALOGUE - OWNERS MANUAL

- English Workshop Manual, Parts Catalogue, Owners Manual and Wiring Diagrams, for motorcycles Suzuki GS1000.

MANUALS INCLUDED:

- SUZUKI GS1000 WORKSHOP MANUAL
- SUZUKI GS1000 SUPPLEMENT
- SUZUKI GS1000 C-E-S-L WORKSHOP MANUAL
- SUZUKI GS1000 S SUPPLEMENT
- SUZUKI GS1000 G PARTS CATALOGUE
- SUZUKI GS1000 GT-GX PARTS CATALOGUE
- SUZUKI GS1000 H-E PARTS CATALOGUE
- SUZUKI GS1000 LN PARTS CATALOGUE
- SUZUKI GS1000 S PARTS CATALOGUE
- SUZUKI GS1000 SN PARTS CATALOGUE
- SUZUKI GS1000 ST PARTS CATALOGUE
- SUZUKI GS1000 T-HT-ET PARTS CATALOGUE
- SUZUKI GS1000 E OWNERS MANUAL
- SUZUKI GS1000 G OWNERS MANUAL

CONTENTS:

GS1000 WORKSHOP MANUAL

-Suzuki GS1000 Workshop Manual
-Group Index
-General Information
- Serial Number Location
- Fuel, Oils & Breaking In Procedure
- Orientation
- Service Specifications
-Service Specifications
- Engine Top End
- Engine Lower End
- Lubrication System
- Clutch
- Transmission
- Fuel System
- Ignition System
- Charging System
- Lamp Wattage
- Brakes + Wheels
- Tire Pressure, Suspension + Frame + Steering
- Torque Table
-Periodic Maintenance
- Schedule
- Battery
- Cylinder Head Nuts & Exhaust Pipe Bolts
- Air Cleaner Element
- Tappet Clearance
- Shim Selection Chart
- Spark Plug
- Contact Breaker Points
- Ignition Timing
- Engine Oil
- Carburetor Idle RPM
- Engine Oil Filter
- Clutch, Drive Chain
- Tires
- Brakes
- Steering
- Front Forks
- Chassis Bolts & Nuts
-Special Materials
-Special Tools
-Trouble Shooting
- Engine & Chassis
- Electrical
-Engine
- Engine Removal
- Engine Remounting
- Compression Check
- Top End - Removal
- Top End - Installation
- Top End - Inspection
- Cylinder
- Piston & Rings
- Lower End
- Clutch
- External Mechanism For Gear Shift
- Engine Lubricaion System
-Fuel System & Carburetors
- Fuel Cock
- Fuel tank
- Carburetors
- Troubleshooting
-Emission Control & Regulations
- Regulation
- Emission Control Carburetor Components
- General Emission Information
-Chassis
- Handlebar
- Clutch Cable
- Throttle Cable
- Speedometer Cable
- Tachometer Cable
- Headlamp
- Ignition Switch
- Front Fork
- Steering Stem
- Steering Stem Bearing
- Front Wheel
- Front Brake Master Cylinder
- Front Brake Caliper
- Brake Parts To Be Periodically Replaced
- Rear Brake Caliper
- Rear Master Cylinder
- Rear Wheel
- Swinging Arm
- Rear Shock Absorber
-Electrical System
- Ignition System
- Spark Plug
- Charging System
- Starter System
- Battery
- Troubleshooting
- Utility Switches & Devices
- Lamp Wattage Data
- Fuel Gauge
- Wiring Diagram
- Cable Routing
-GS1000E Supplementary Workshop Manual
- Contents
- Master Cylinder
- Caliper
- Trouble Shooting
-GS1000S Supplementary Workshop Manual
- Contents
- Information
- Specifications
- Service Data
- Periodic Maintenance
- Engine Removal
- Fuel System
- Chassis
- Electrical
- Wire & Cable Routing
- Cable Routing
- Wiring Diagram
-GS1000L Supp;ementary Workshop Manual
- Contents
- Information
- Specifications
- Service Data
- Periodic Maintenance
- Engine Removal
- Fuel System & Carburetors
- Chassis
- Electrical
- Wire & Cable Routing
- Wiring Diagram
-GS1000E Supplementary Workshop Manual
- Contents
- Specifications
- Service Data
- Torque Table
- Special Materials
- Periodic Maintenance
- Modifications
- Emission Control & Regulations
- Fuel System
- Full Transistorized Ignition System
- GS1000ST Supplentary Workshop Manual
-GS1000GT Supplementary Workshop Manual
- Contents
- Specifications
- Service Data
- Torque Table
- Special Materials
- Periodic Maintenance
- Emission Control & Regulations
- Engine Removal & Remounting
- Secondary Bevel Gear Assembly
- Clutch
- Crankcase
- Transmission
- Lubrication System
- Shaft Drive
- Final Drive Bevel Gear Assembly
- Full-Transistorized Ignition System
- Charging System
- Front Fork
- Front Master Cylinder
- Front Caliper
- Rear Wheel
- Rear Swinging Arm
- Wire & Cable Routing
- Wiring Diagram
-GS1000GLT Supplementary Workshop Manual
- Specifications
- Service Data
- Fuel Cock
- Front Fork
- Front Master Cylinder
- Wire & Cable Routing
- Wiring Diagram
-GS1000GX Supplementary Workshop Manual
- Contents
- Specifications
- Service Data
- Charging System
- Wire & Cable Routing
- Wiring Diagram

GS1000 C-E-S-L WORKSHOP MANUAL

-GS1000C
- Forward
- View of Suzuki GS1000
-Group Index
-1-General Informaion
- Identification Table
- Fuel, Oils, and Braking-In Procedure
- Orientation
- Service Specifications
-2-Service Specifications
- Service Specifications
- Torque Table
-3-Periodic Maintenance
- Periodic Maintenance Schedule
- Periodic Maintenance Procedures
- Battery
- Cylinder Head Nuts and Exhaust Pipe Bolts
- Air Cleaner Element
- Tappet Clearance
- Shim Selection Chart
- Spark Plug
- Fuel Line
- Contact Breaker Point
- Ignition Timing
- Engine Oil
- Engine Oil Filter
- Carburetor Idle RPM
- Clutch
- Drive Chain
- Brake Hoses
- Tires
- Brakes
- Steering
- Front Forks
- Chassis Bolts and Nuts
-4-Special Materials
-5-Special Tools
-6-Troubleshooting
- Engine and Chassis
- Electrical
-7-Engine
- Engine Removal
- Engine Remounting
- Compression Check
- Top End - Removal
- Top End - Installation
- Top End - Inspection
- Cylinder
- Piston and Rings
- Lower End
- Clutch
- External Mechanism For Gear Shift
- Engine Lubricaion System
-8-Fuel System & Carburetors
- Fuel Cock
- Fuel Tank
- Carburetors
- Starter Unit
- Pilot Circuit
- Main Circuit
- Float Unit
- Needle Valve
- Disassembly
- Reassembly
- Adjustment
- Troubleshooting
-9-Emission Control & Regulations
- Regulation
- Emission Control Carburetor Components
- General Emission Information
-10-Chassis
- Handlebar
- Clutch Cable
- Throttle Cable
- Speedometer Cable
- Tachometer Cable
- Speedometer and Tachometer
- Headlamp
- Ignition Switch
- Front Fork
- Steering Stem
- Steerming Stem Bearing
- Front Wheel
- Front Brake Master Cylinder
- Front Brake Caliper
- Caliper
- Rear Brake Caliper
- Rear Master Cylinder
- Rear Wheel
- Swinging Arm
- Rear Shock Absorber
-11-Electrical System
- Ignition System
- Spark Plug
- Charging System
- Testing Rectifier, Regulator, & Alternator
- Inspection Of Charging System Components
- Starter System
- Battery
- Troubleshooting
- Wiring Diagram
-12-GS1000E
- General Information
- Front Brake
- Wheel
- Self-Cancelling Turn Signal
- Wiring Diagram
-13-GS1000S
- General Information
- Periodic Maintenance
- Engine Removal
- Fuel System
- Chassis
- Electrical
- Wire & Cable Routing
- Wiring Diagram
-14-GS1000L
- General Information
- Periodic Maintenance
- Engine Removal
- Fuel System & Carburetors
- Chassis
- Electrical
- Wire & Cable Diagram
- Wiring Diagram

PARTS CATALOGUE

- Index
- Overview
- Preface
- Colour Code
- Fig. 1 Cylinder Head Cover
- Fig. 2 Cylinder Head
- Fig. 3 Cylinder
- Fig. 4 Crankcase
- Fig. 5 Crankcase Cover
- Fig. 6 Oil Pump & Filter
- Fig. 7 Crankshaft
- Fig. 8 Starter Clutch
- Fig. 9 Camshaft Valve
- Fig. 10 Cam Chain
- Fig. 11 Carburetor
- Fig. 12 Air Cleaner
- Fig. 13 Muffler
- Fig. 14 Clutch
- Fig. 15 Transmission
- Fig. 16 Secondary Drive Gear
- Fig. 17 Gear Shifting
- Fig. 18 Prop Shaft Final Drive Gear
- Fig. 19 Starter Motor
- Fig. 20 Generator GT
- Fig. 21 Generator GX
- Fig. 22 Signal Generator
- Fig. 23 Battery
- Fig. 24 Speedometer & Tachometer
- Fig. 25 Headlamp
- Fig. 26 Turn Signal Lamp GT
- Fig. 27 Turn Signal Lamp GX
- Fig. 28 Rear Combination Lamp
- Fig. 29 Electrical
- Fig. 30 Wiring Harness
- Fig. 31 Frame
- Fig. 32 Stand
- Fig. 33 Foot Rest
- Fig. 34 Fuel Tank GT
- Fig. 35 Fuel Tank GX
- Fig. 36 Fuel Cock
- Fig. 37 Seat GT
- Fig. 38 Seat GX
- Fig. 39 Front Cover GT
- Fig. 40 Front Cover GX
- Fig. 41 Front Fork
- Fig. 42 Steering Stem
- Fig. 43 Head Lamp Housing & front Fender
- Fig. 44 Front Wheel
- Fig. 45 Handle Bar
- Fig. 46 Right Handle Switch
- Fig. 47 Left Handle Switch
- Fig. 48 Front Brake Calipers
- Fig. 49 Front Master Cylinder
- Fig. 50 Front Brake Hose
- Fig. 51 Rear Swing Arm
- Fig. 52 Rear Fender
- Fig. 53 Rear Wheel
- Fig. 54 Rear Calipers
- Fig. 55 Rear Master Cylinder
- Fig. 56 Optional Parts
