Suzuki GS850G - Repair, Workshop Manual, Parts Catalog and Wiring Diagrams

suzuki%20gs850g%20-%20service%20manual%20-%20wiring%20diagrams%20-%20parts%20manual.gif

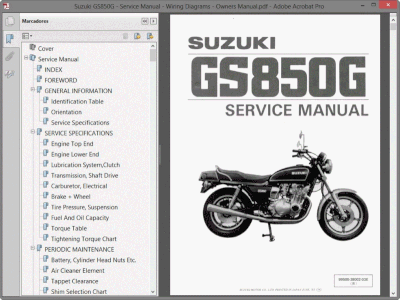

SUZUKI GS850G - WORKSHOP, SERVICE, REPAIR MANUAL - WIRING DIAGRAMS - PARTS MANUAL

- English Workshop Manual / Repair Manual, Wiring Diagrams and Parts Manual, for motorcycles Suzuki GS850G.

CONTENTS:

COVER

WORKSHOP MANUAL

- Index
- Foreword
- General Information
- Identification Table
- Orientation
- Service Specifications
- Service Specifications
- Engine Top End
- Engine Lower End
- Lubrication System,Clutch
- Transmission, Shaft Drive
- Carburetor, Electrical
- Brake + Wheel
- Tire Pressure, Suspension
- Fuel And Oil Capacity
- Torque Table
- Tightening Torque Chart
- Periodic Maintenance
- Battery, Cylinder Head Nuts Etc.
- Air Cleaner Element
- Tappet Clearance
- Shim Selection Chart
- Spark Plugs, Fuel Line
- Contact Breaker Points, Ignition Timing
- Timing Adj. #1 and #4 Cylinders
- Timing Adj. #2 and #3 Cylinders
- Engine Oil
- Engine Idle R/Min.
- Clutch
- Drive Shaft Gear Oil
- Brakes
- Tires
- Steering, Front Forks
- Chassis Nuts And Bolts
- Special Materials
- Special Tools
- Trouble Shooting
- Engine And Chassis
- Electrical
- Engine
- Engine Removal
- Engine Remounting
- Compression Check
- Top End Removal
- Valve Guide Service
- Cylinder Head Instalation
- Top End Inspection
- Cylinder, Piston And Rings Removal
- Instalation
- Lower End, Generator Stator
- Generator Rotor
- Contact Breaker Points
- Condenser
- Automatic Advancer For Contact Breaker
- Clutch
- Inspection
- Instalation
- Secondary Bevel Gear Assembly
- Secondary Driven Gear Assembly
- Secondary Gear Set Clearancing Operations
- External Mechanism For Gear Shift
- Engine Lube System Chart
- Oil Pump
- Oil Pump Pressure Test
- Oil Filter
- Sump Filter
- Crankcase
- Crankshaft
- Transmission
- Drive Shaft Gear
- Kick Shaft
- Shaft Drive
- Final Drive Bevel Gear Parts Breakdown
- Final Gear Case Breather Circuit
- Final Drive Bevel Gear Ass'y
- Inspection And Disassembly
- Preload Adjustment
- Assembly
- Bearing Cover Shim Adjustment
- Backlash Adjustment
- Tooth Contact Adjustment
- Final Assembly
- Instalation If Propeller Shaft & Final Drive Gear
- Fuel System & Carburetors
- Fuel Cock
- Fuel Tank
- Carburetors
- Starter Unit
- Main Circuit
- Float Unit, Needle Valve
- Disassembly
- Re-Assembly
- Full Closed And Open Position
- Fuel Level Adjustment
- Balancing The Carbs
- Throttle Cable Adjustment
- Trouble Shooting Carbs
- Emission Control & Regulations
- Regulation
- Components
- General Emmision Information
- Chassis
- Handlebars
- Clutch Cable, Throttle Cable
- Choke Cable, Speedometer Cable
- Tachometer Cable
- Speedo & Tach Removal
- Headlight
- Ignition Switch
- Front Fork
- Disass'y Of Front Fork
- Assembly
- Method Of Measuring Fork Oil Level
- Adjusting The Air Fork
- Steering Stem
- Removal
- Assembly
- Caution
- Removal Of Steering Stem Race
- Steering Stem Bearing
- Front Wheel
- Inspection
- Tire Warning
- Assembly
- Removal Of Tube And Tire
- Front Brake Master Cylinder
- Master Cylinder Disassembly
- Inspection Of Master Cylinder
- Front Brake Caliper
- Removal
- Caliper Disassembly
- Caliper Assembly
- Rear Brake Caliper
- Disassembly Of Rear Brake Caliper
- Air Bleeding Of The Brake Fluid Circuit
- Brake Pedal Adjustment
- Rear Master Cylinder
- Disassembly Of Master Cylinder
- Rear Wheel
- Removal
- Inspection
- Assembly
- Rear Swinging Arm
- Disassembly Of Swinging Arm Bearing
- Rear Shock Absorber
- Damper Adjustment
- Matching Of Front And Rear Suspensions
- Removal
- Inspection
- Assembly
- Electrical System
- Ignition System
- Spark Plug
- Charging System
- AC Generator Test
- Regulator/Rectifier Test
- Inspection Of Charging System Components
- Starter System
- Inspection
- Battery
- Battery Servicing
- Self-Cancelling Turn Signal System
- Trouble Shooting Battery
- Self-Cancelling Turn Signal
- Gear Shifting Switch And Position Indicator
- Utility Switches And Devices
- Horn And Horn Switch
- Starter Disconnect Switch
- Oil Pressure Switch
- Kill Switch & Starter Switch
- Light Wattage Data
- Rear Combination Lights
- Turn Signal Lights
- Inspection Of Headlight
- Fuel Gauge
- Fuel Meter And Gauge Troubleshooting
- Wire Routing
- Cable Routing
- Rear Brake Hose Routing
- Wiring Diagram
- Inspection At Setting-Up
- Gs850gt
- Specifications
- Service Data
- Valves And Guides
- Camshaft + Cylinder + Head
- Piston + Ring + Cylinder
- Crankshaft, Oil Pump
- Clutch
- Transmission, Shaft Drive
- Carburetor
- Electrical
- Brake + Wheel
- Suspension
- Fuel + Oil + Capacity
- Tire Pressure, Wattage
- Torque Table
- Engine
- Chassis
- Special Materials
- Periodic Maintenance
- Modifications
- Fuel System
- Electrical
- Chassis
- Carburetor
- Specifications
- Diaphragm And Piston Operation
- Slow System
- Main System
- Starter system
- Float system
- Fuel System
- Float Height Adjustment
- Balancing Four Carbs
- Throttle Cable Adjustment
- Emmission Control And Regulations
- Full Transistorized Ignition System
- Front Master Cylinder
- Removal And Disassembly
- Inspection
- Re-Assembly
- Front Caliper
- Removal And Disassembly
- Inspection
- Re-Assembly
- Rear Wheel
- Wire And Cable Routing
- Wiring Diagram
- Gs850glt
- Specifications
- Service Data
- Fuel Cock
- Wire And Cable Routing
- Wiring Diagram
- Gs850gx
- Specifications
- Service Data
- Valves + Guides
- Camshaft + Cylinder + Head
- Piston + Ring + Cylinder
- Crankshaft, Oil Pump, Clutch
- Transmission, Shaft Drive
- Carburetor
- Electrical
- Brake + Wheel
- Suspension
- Fuel+ Oil + Capacity
- Tire Pressure, Wattage
- Torque Table
- Engine
- Chassis
- Torque Chart
- Special Materials
- Periodic Maintenance
- Camshaft Sprocket And Bolt
- Driven Gear Shift Fork
- Gear Shifting Spring
- Universal Joint Flange And Propeller Shaft
- Turn Signal Light
- Wire And Cable Routing
- Wiring Diagram
- Gs850glx
- Specifications
- Service Data
- Oil Jet
- Fuel Cock
- Front Fork
- Removal And Disassembly
- Inspection
- Re-Assembly
- Wire And Cable Routing
- Wiring Diagram
- Gs850gz
- Specifications
- Service Data
- Valves + Guides
- Camshaft + Cylinder Head
- Piston + Ring + Cylinder
- Conrod + Crankshaft
- Oil Pump, Clutch
- Transmission, Shaft Drive
- Carburetor
- Electrical
- Brake + Wheel
- Suspension
- Fuel + Oil Capacity
- Tire Pressure, Wattage
- Torque Table
- Engine
- Chassis
- Torque Chart
- Special Materials
- Periodic Maintenance
- Emission Controls And Regulations
- Cover Tightening Bolts
- Oil Jet
- Cylinder Head And Head Cover
- Cam Timing
- Fuel Cock
- Choke Lever
- Ignition System
- Inspection
- Front Master Cylinder
- Removal And Disassembly
- Inspection
- Re-Assembly
- Wire And Cable Routing
- Wiring Diagram
- Gs850glz
- Specifications
- Service Data
- Valves + Guides
- Camshaft + Cylinder + Head
- Piston + Ring + Cylinder
- Crankshaft, Oil Pump
- Clutch
- Transmission, Shaft Drive
- Carburetor
- Electrical
- Brake + Wheel
- Suspension
- Fuel + Oil + Capacity
- Tire Pressure, Wattage
- Torque Table
- Engine
- Chassis
- Torque Chart
- Special Materials
- Periodic Maintenance
- Emission Control And Regulations
- Cover Tightening Bolt
- Starter Lever
- Front Master Cylinder
- Cylinder Removal And Disassembly
- Inspection
- Re-Assembly
- Wire And Cable Routing
- Wiring Diagram
- Gs850gd
- Specifications
- Periodic Maintenance Schedule
- Wiring Diagram
- Wire And Cable Routing
- Tightening Torque
- Engine
- Chassis
- Torque Chart
- Service Data
- Valves + Guides
- Camshaft + Cylinder Head
- Cylinder + Piston + Piston Ring
- Conrod + Crankshaft
- Oil Pump, Clutch
- Transmission, Shaft Drive
- Carburetor
- Electrical
- Brake + Wheel
- Suspension
- Fuel + Oil + Capacity
- Tire Pressure + Wattage
- Gs850gld
- Specifications
- Periodic Maintenance Schedule
- Ignition System
- Inspection
- Wiring Diagram
- Wire And Cable Routing
- Tightening Torque
- Engine
- Chassis
- Torque Chart
- Service Data
- Valves + Guides
- Camshaft + Cylinder + Head
- Piston + Ring + Cylinder
- Crankshaft, Oil Pump
- Clutch
- Transmission, Shaft Drive
- Carburetor
- Electrical
- Brake + Wheel
- Suspension, Fuel + Oil
- Tire Pressure, Wattage

PARTS MANUAL

- Airbox
- Cam Chain
- Cam Shaft Valves
- Carbs
- Clutch
- Crankcase Cover
- Crankcase
- Cylinder Head Cover
- Cylinder Head
- Cylinder
- Electrical
- Exhaust
- Footrest
- Forks
- Frame
- Front Brake Hose
- Front Caliper
- Front Master Cylinder
- Front Wheel
- Fuel Tank
- Fuel Tap
- Gear Shifting
- Generator
- Handlebar
- Headlamp Front Mudguard
- Headlamp
- Img12
- Img13
- Indicators
- Lh Switch
- Oil Pump Filter
- Optional
- Prop Shaft Final Drive
- Rear Caliper
- Rear Master Cylinder
- Rear Mudguard
- Rear Wheel
- Rh Switch
- Seat Tail Piece
- Secondary Drive Gear
- Side Panels
- Signal Generator
- Speedometer - Tachometer
- Stand
- Starter Clutch
- Starter Motor
- Steering
- Swinging Arm
- Tail Light
- Transmission
- Wiring Harness
