Toyota Sequoia (2008+)
TOYOTA SEQUOIA (2008+) - ELECTRICAL DIAGRAMS - COMPONENTS LOCATOR

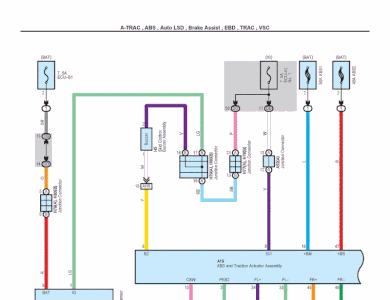

TOYOTA SEQUOIA (2008+) - ELECTRICAL DIAGRAMS - COMPONENTS LOCATOR - English Wiring and Electrical Circuits for vehicles Toyota Sequoia (2008+). CONTENTS: WIRING DIAGRAMS - A-TRAC , ABS , Auto LSD , Brake Assist , EBD , TRAC , VSC - Air Conditioning - Automatic Glare-Resistant EC Mirror with Compass - Automatic Light Control , Light Auto Turn Off System - Accessory Meter - Audio System - Air Suspension - Audio System , Navigation System , Parking Assist - Back Door Opener - Back-Up Light - Cruise Control - Cruise Control - Climate Control Seat , Seat Heater - Cigarette Lighter - Combination Meter - Charging - Door Lock Control - Data Link Connector 3 - Dynamic Radar Cruise Control - Dynamic Radar Cruise Control - Electronically Controlled Transmission and A/T Indicator - Electronically Controlled Transmission and A/T Indicator - Engine Control - Engine Control - Engine Immobiliser System - Front Fog Light - Front Wiper and Washer - Garage Door Opener - Ground Point - Headlight Cleaner - Headlight - Horn - Interior Light - Illumination - Power Outlet - Ignition - Ignition - Key Reminder , Seat Belt Warning - Mirror Heater - Multi Mode 4WD - Multiplex Communication System - Parking Assist - Power Back Door - Power Outlet - Power Steering - Power Rear No.2 Seat with Stowing Function - Power Source - Power Seat - Power Seat - Power Seat - Power Seat (Driver's Seat w/o Seat Position Memory) - Power Rear No. 2 Seat with Stowing Function - Power Seat (Front Passenger's Seat)Seat Heater (w/o Cl imate Control Seat) - Seat Heater (Rear) - Cl imate Control Seat and Seat Heater - Remote Control Mirror (w/o Seat Position Memory) - Cigarette LighterAccessory Meter - Power Out l et (12V) - Power Out l et (115V)Rear Window Defogger - Parking Assist (Intuitive Parking Assist) - Audio System (Separate Type Ampl ifier), Navigation System and - Parking Assist (Rear View Monitor) - Audio System (Separate Type Ampl ifier), Navigation System and* 1 : w/ Navigation System - Parking Assist (Rear View Monitor) - Audio System (Separate Type Ampl ifier), Navigation System and - Parking Assist (Rear View Monitor) - Audio System (Separate Type Ampl ifier), Navigation System and* 1 : w/ Navigation System - Parking Assist (Rear View Monitor) - Audio System (Separate Type Ampl ifier), Navigation System and - Parking Assist (Rear View Monitor) - Audio System (Built–in Type Amplifier) - Combination Meter - Air Conditioning - Option Connector (Di spl ay) COMPONENTS LOCATIONS - Ground Points in Engine Compartment - Position of Parts in Engine Compartment - Wire and Wire in Engine Compartment - Position of Parts in Seat - Wire and Wire in Seat - Ground Points in Engine Compartment - Position of Parts in Engine Compartment - Wire and Wire in Engine Compartment - Antenna in Antenna - Ground Points in Body - Position of Parts in Body - Wire and Wire in Body - Position of Parts in Seat - Wire and Wire in Seat - Ground Points in Instrument Panel - Position of Parts in Instrument Panel - Wire and Wire in Instrument Panel RELAY LOCATIONS - Body - Seat - Driver Side J/B Inner Circuit - Driver Side J/B Inner Circuit - Engine Compartment - Instrument Panel - Engine Room R/B and Engine Room J/B Inner Circuit - Body - Seat - Engine Compartment - Instrument Panel - J/B No.3 Inner Circuit - J/B No.4 Inner Circuit - J/B No.5 Inner Circuit - J/B No.6 Inner Circuit - J/B No.7 Inner Circuit - Junction Connector (CAN LH No.1) Inner Circuit - Junction Connector (CAN LH No.2) Inner Circuit - Junction Connector (CAN RH) Inner Circuit
Toyota Sequoia (2008+) - Wiring and Electrical Circuits
