Volvo 940

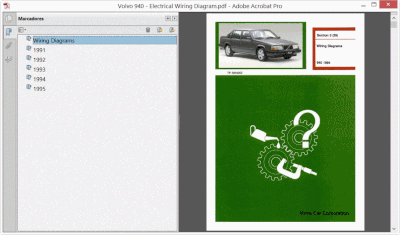

VOLVO 940 - ELECTRICAL WIRING DIAGRAMS
VOLVO 940 - ELECTRICAL WIRING DIAGRAMS - English Electrical Wiring Diagrams, to Volvo 940 series. CONTENTS: - How to use the wiring diagrams . 2 - Electrical distribution unit, fuses 4 - Fuses . 5 - Ignition lock and relay location in engine compartment 6 - Relay location, electrical dist. unit . 7 - Wiring harnesses . 8 - Connectors 9 - Ground connections 20 - LH-jetronic 2.4 multiport fuel injection system (MFI) - (B 200 F/G, B 230 F/FB/FD/G) . 22 - LH-jetronic 2.4 multiport fuel injection system (MFI) - (B 200 FT, B 230 FT/GT) . 24 - Regina multiport fuel injection system (MFI) (B 230 F) . 26 - Engine cooling fan 28 - Cruise control . 30 - Cruise control, function (schematic presentation) 32 - EZ 116 K Distributor ignition (DI) system - (B 200 F/G, B 230 F/FB/FD/G) . 34 - EZ 116 K Distributor ignition (DI) system (B 200 FT, B 230 FT/GT) . 36 - REX-1 Distributor ignition (DI) system (B 230 F) 38 - Power supply . 40 - Starter system . 42 - Diesel preheating, overload protector and EGR (D 24 TIC) 44 - Feedback . 168 - High and low beam, Nordic region, Netherlands, Belgium . 48 - High and low beam, Great Britain 50 - Reduced intensity low beam (DIM-DIP) Great Britain . 52 - High and low beam, USA . 54 - High and low beam, Canada . 56 - Beam width control 58 - Parking lights, tail lights and number plate lights 60 - Parking lights, tail lights and number plate lights USA, Canada . 62 - Brake lights . 64 - Brake lights, USA, Canada . 66 - High and low beam . 46 - Glove compartment and vanity mirror lighting 70 - Interior lighting . 72 - Trunk light 74 - Instrument and control panel lights 76 - Foglights 78 - Foglights, Japan, Saudi Arabia, Taiwan and Overseas . 80 - Foglights, USA, Canada . 82 - Rear foglights, USA, Canada . 84 - Turn signals and hazard warning flashers 86 - Horn 88 - Headlight wash/wipe . 90 - Windshield wash/wipe 92 - Tailgate wash/wipe 94 - Cigar lighter 96 - On-board diagnosis (OBD) . 98 - Pre-routed wiring for anti-theft alarm 100 - Pre-routed wiring for towing hook . 102 - Bulb malfunction indicator . 104 - Bulb malfunction indicator for cars with extra brake light 106 - Bulb malfunction indicator with brake monitor . 108 - Seat belt reminder . 110 - Seat belt reminder with ignition key warning, USA, Canada, Korea 112 - Combined instrument . 114 - Speedometer and tripmeter . 116 - Ambient temperature gauge 118 - Radio connections, 4-door 120 - Radio connections, 5-door 122 - Radio connections, 4-door (Radio with integrated amplifier) . 124 - Radio connections, 5-door (Radio with integrated amplifier) . 126 - M 46 Overdrive . 128 - AW 70/70/72 Overdrive with kickdown inhibitor AW 71/72 . 130 - P-shift lock, automatic transmission . 132 - ABS Brake system 134 - Power window lifts . 136 - Central locking 138 - Power sunroof . 140 - Heated rear window 142 - Heated rear window and door mirrors with timer relay . 144 - Power door mirrors . 146 - Heated driver’s/passenger’s seat, normal output . 148 - Heated driver’s/passenger’s seat, high output . 150 - Power seat . 152 - Power seat with memory . 154 - Cabin fan, standard heater 156 - Manual Climate Control (MCC) 158 - Electronic Climate Control (ECC) . 160 - Exhaust temperature sensor (Japan) . 162 - SRS Supplemental Restraint System (airbag) 164 - SRS Supplemental Restraint System (airbag) USA, Canada . 166 - Backup (reversing) lights 68
Volvo 940 - Electrical Wiring Diagrams and Components Locator
