Yamaha YFZ350 Banshee - Workshop Manual - Manuel de Reparation

yamaha%20yfz350%20-%20service%20manual%20-%20manuel%20de%20reparation%20-%20wiring%20diagrams%20-%20schemas%20electriques.gif

YAMAHA YFZ350 - WORKSHOP MANUAL - MANUEL DE REPARATION

- English and French Workshop Manual and Wiring Diagrams, for quad Yamaha YFZ350.
- Manuel de Réparation et Schemas Electriques en français, pour quad Yamaha YFZ350.

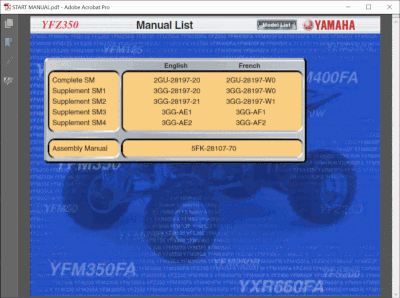

CONTENTS:

- Complete SM    2GU-28197-20 2GU-28197-W0
- Supplement SM1 3GG-28197-20 3GG-28197-W0
- Supplement SM2 3GG-28197-21 3GG-28197-W1
- Supplement SM3 3GG-AE1 3GG-AF1
- Supplement SM4 3GG-AE2 3GG-AF2
- Assembly Manual 5FK-28107-70

INDEX

General Information
- Machine Identification
- Important Information
- Special Tools
Periodic Inspections And Adjustments
- Maintenance Intervals
- Engine
- Chassis
- Electrical
Engine Overhaul
- Engine Removal
- Disassembly
- Inspection And Repair
- Engine Assembly And Adjustment
Cooling System
- Radiator
- Water Pump
Carburetion
- Carburetor
- Reed Valve
Chassis
- Front Wheel
- Rear Wheel And Rear Axle
- Front Brake
- Rear Brake
- Steering System
- Steering Knuckles And Tie-Rod Ends
- Front Shock Absorber And Front Arms
- Rear Shock Absorber And Swingarms
Electrical
- Yfz350t Circuit Diagram
- Electrical Components
- Ignition System
- Lighting System
Appendices
- Specifications
- General Torque Specifications
- Definition Of Units
- Cable Routing
- Yfz350t Wiring Diagram
- Yfz350t Wiring Diagram
